Using an AAV for washing machine waste trap

by benawhile » Mon Jul 01, 2024 2:45 pm

Hi

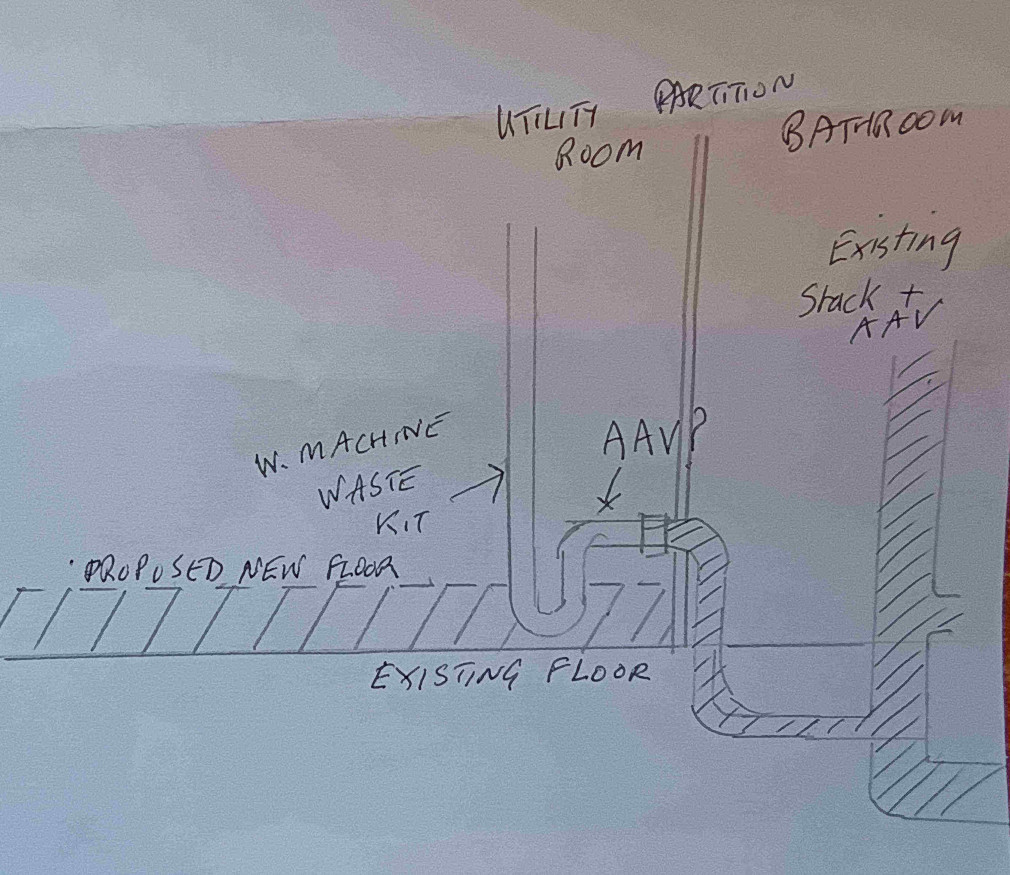

We have a small utility cupboard for a washing machine with a standard washing machine waste kit installed as shown. For complicated reasons we need to raise the floor as shown but this means we obviously need to raise the washing machine waste trap.

The shaded area is how the team of builders that built the bathroom section, which is an extension on a beam and block floor, left things. I am not precisely sure of the below ground arrangement but they did put in the soil stack as shown. There is a shower and w c not shown. The w. machine waste actually joins up with the shower waste before joining the soil pipe.

Then the plumber took over and installed the waste kit.

After researching this for issues of self siphoning etc before I raise the P trap it looks as though the installation is more of an S trap than a P trap due to the downward bend immediately after the P trap. In fact if I raise the P trap as I mean to, just by a few inches, there will be an additional step, I don't see any other way of doing it.

But in any case it seems to me there should be a local AAV just after the P trap. Is that correct? But I can't find any washing machine waste kits that incorporate one.
Attachments
Waste stack image scale 1.jpg

stoneyboy
Project Manager
Project Manager
Posts: 6520
Joined: Wed Dec 10, 2008 6:44 pm

Re: Using an AAV for washing machine waste trap

by stoneyboy » Tue Jul 02, 2024 11:29 pm

Hi benawhile,
I’m assuming that you will retain the existing standpipe arragement ie a vertical pipe with 150mm water seal on the bottom and open end at the top. You will need to add two bends to connect into the pipe through the wall and there is no point in adding an AAV because the standpipe has an open end. If you use screwup rubber seal fittings and find there are issues with the downstream plumbing you could replace a bend with a T and fit an AAV.
Regards S
